Users reap the benefits of FLEXflow One – the stand-alone hot runner solution with servo-driven valve gate system

One year after its launch, FLEXflow One, HRSflow’s servo-driven valve gate system for hot runner nozzles that operates as a stand-alone system avoiding the otherwise necessary control unit, already boasts a large number of applications, including the production of bumpers, front headlamps, rear lights, spoilers, door and tailgate trim. It is also being used for family molds with highly varying part weights. In all these cases, FLEXflow One delivers the desired combination of cost efficiency, unproblematic application and high-quality moldings.

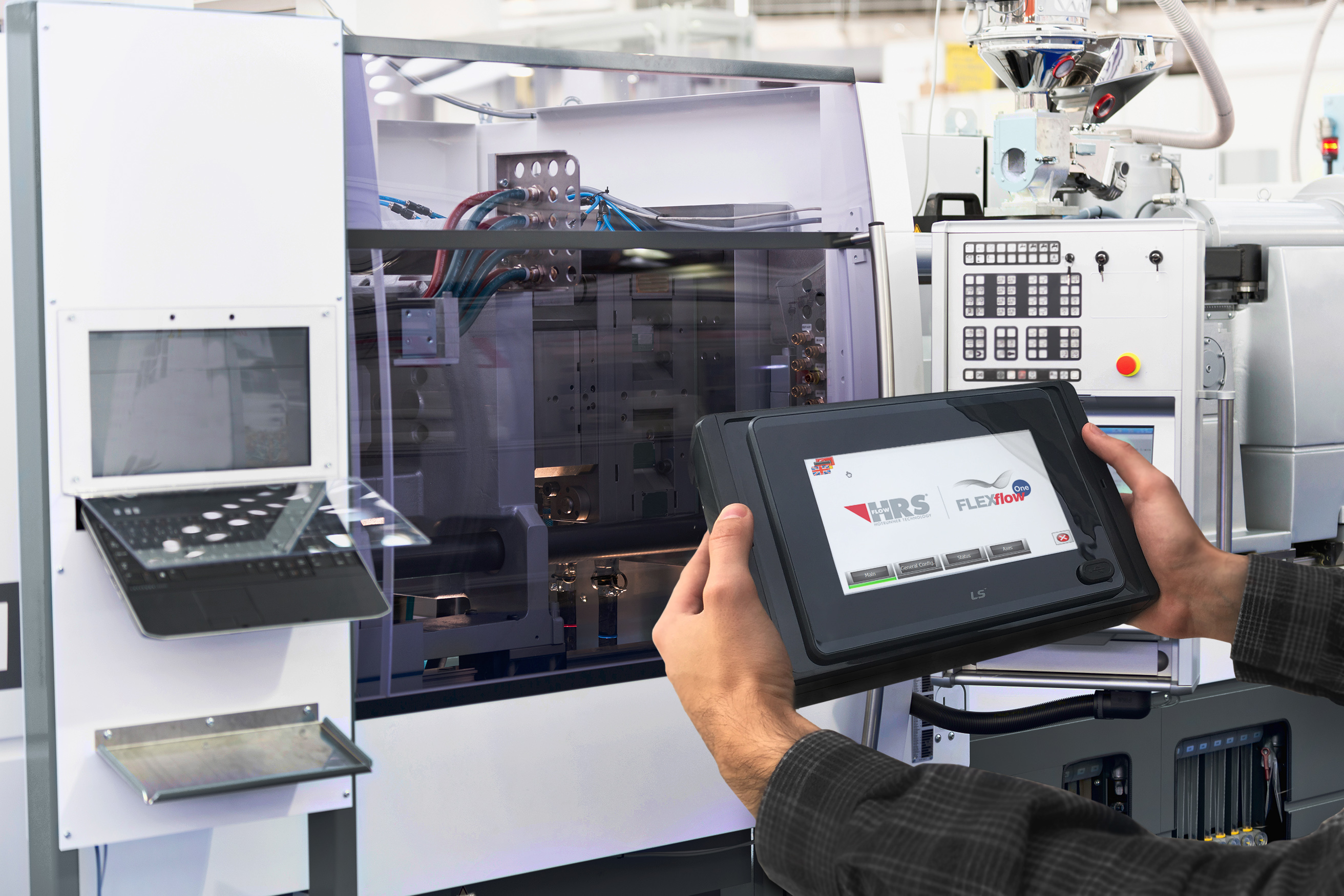

With the FLEXflow One concept, instead of the usual control unit, a simple driver module connected to each individual nozzle has the task of controlling the melt flow in order to produce molded parts of high reproducible quality. The module comes with a default setting that fully opens and closes the needle. To change this setting, the operator connects up the External Smart Interface (ESI), with which he transfers data on stroke, velocity and force specifically optimized for the individual application, to the module. The module then assumes control of the needle motion, including multiple steps if required. Using ESI, up to 24 valve pins per system can be individually programmed. For extra safety compared with hydraulically driven systems, a maximum torque is set for the servo motor. This helps to prevent damage to the hot runner system and mold and thus avoid long and costly production downtime. A Safety Interface Box (SIB) additionally communicates with the control unit of the injection molding machine to ensure safe working conditions.

Generally speaking, the servo-driven system for the valve pins – which has been integrated in both the HRSflow FLEXflow and FLEXflow One systems – offers the attractive advantage of a larger process window compared with conventional hydraulic or pneumatically operated valve gate systems. For example, for the variably adjustable needle stroke, a range of up to a maximum of 18 mm is available. In addition, the freely selectable opening velocity of the valve pins offers more possibilities for adjusting to the respective task when filling the mold cavity than, for example, a throttled hydraulic valve gate system. At the same time, the low-maintenance electrical valve gate works far more precisely, which is reflected in the overall high quality of the injection-molded parts. Furthermore, the freedom from oil and water provides for a cleaner working environment, also under clean-room conditions.
